1/48 German Type VIIC KIT Submarine Model U-boats WW2

Regular price: $538.00
Sale price: $538.00
Regular price: ~~$648.00~~
Unit price: per

Tax included. Shipping calculated at checkout.

Color

Quantity

Quantity must be 1 or more

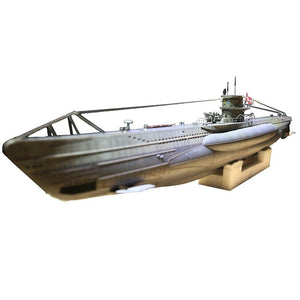

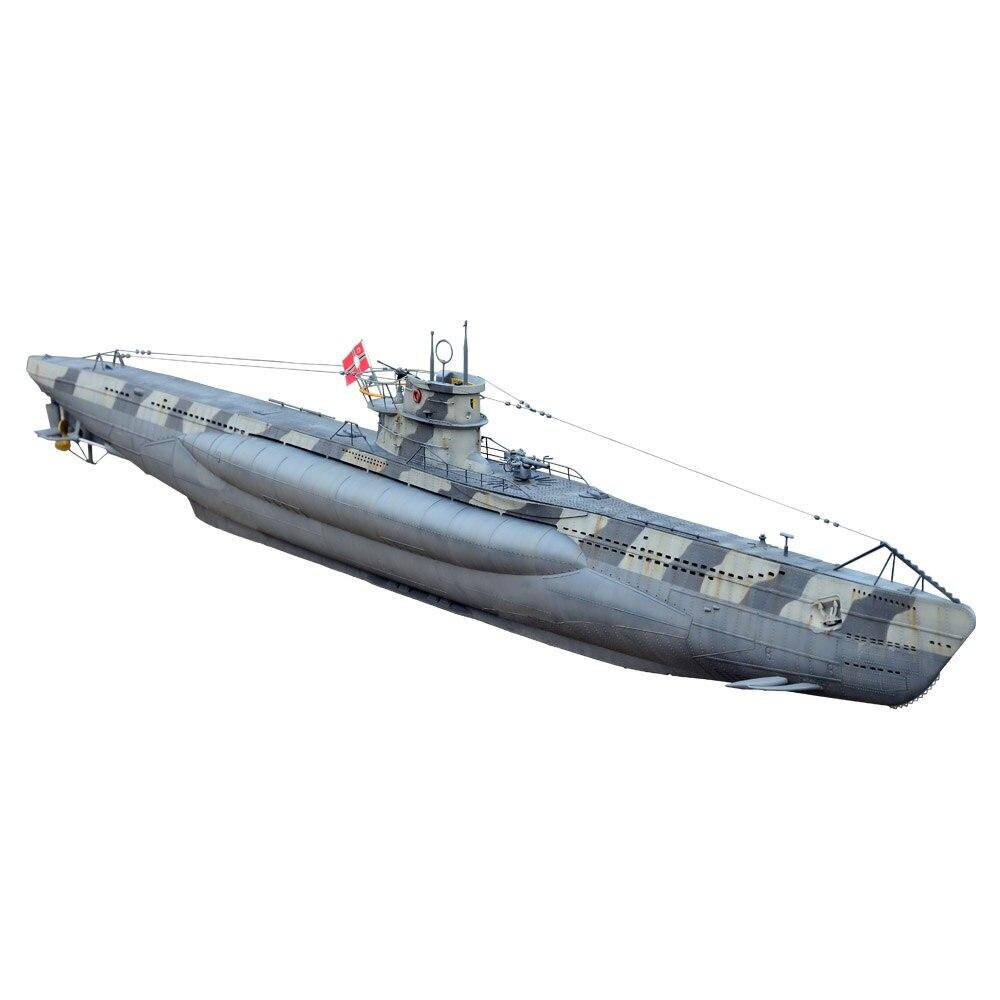

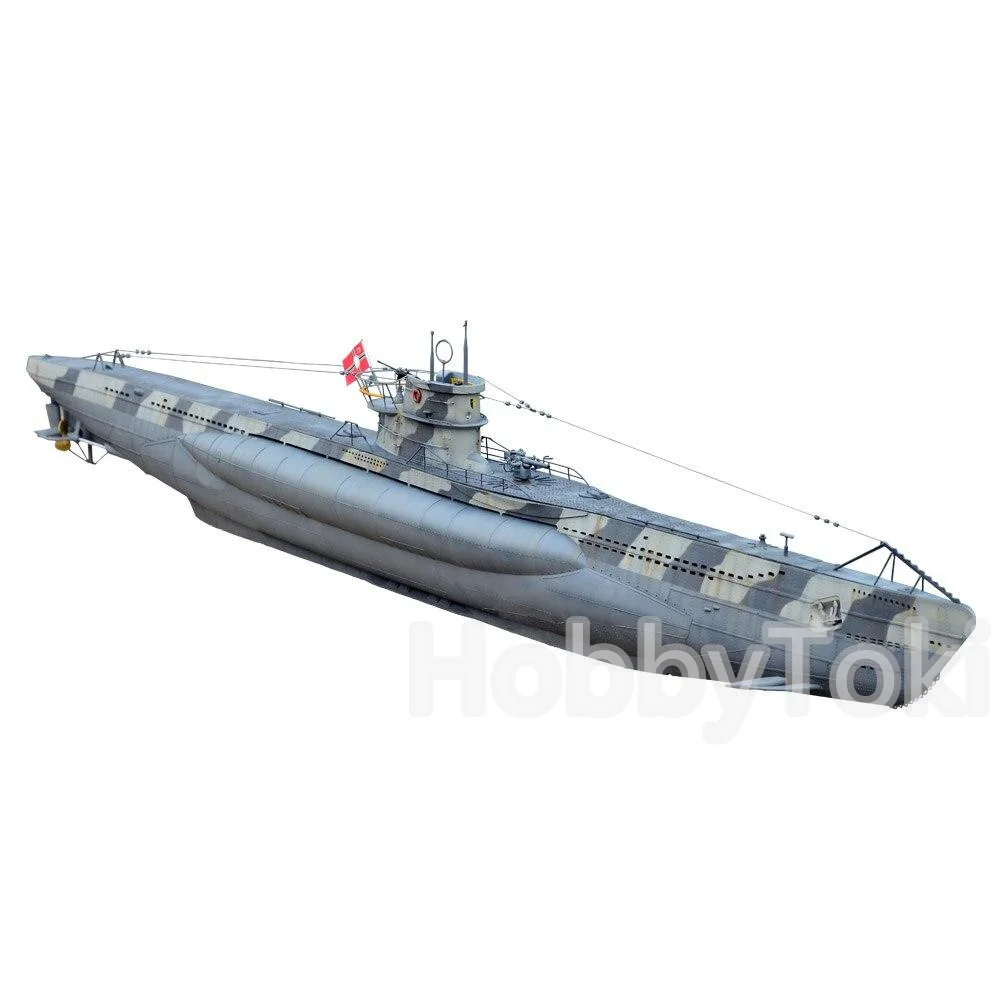

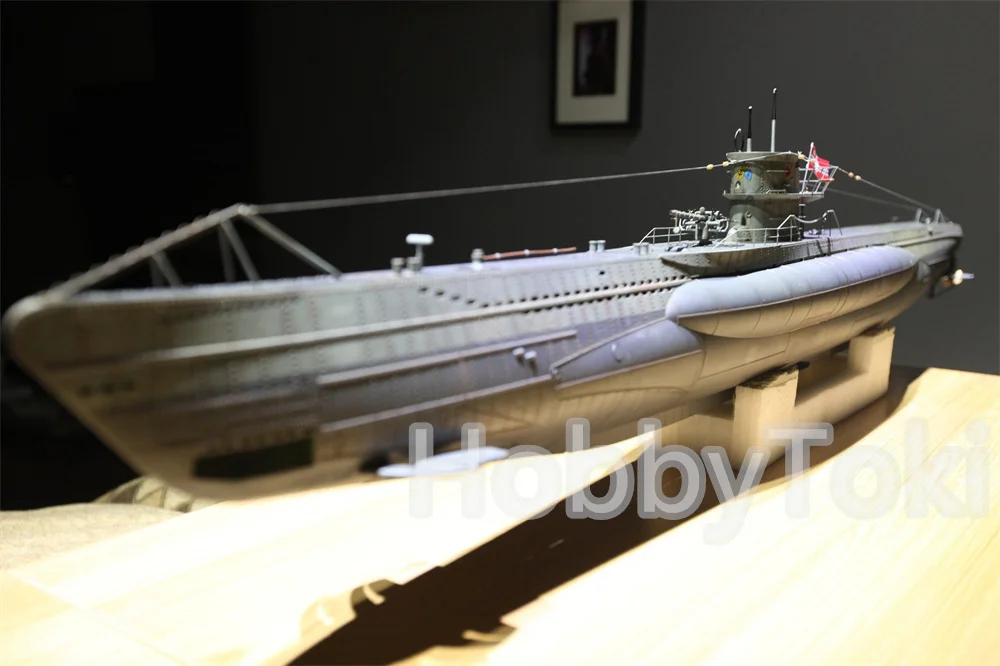

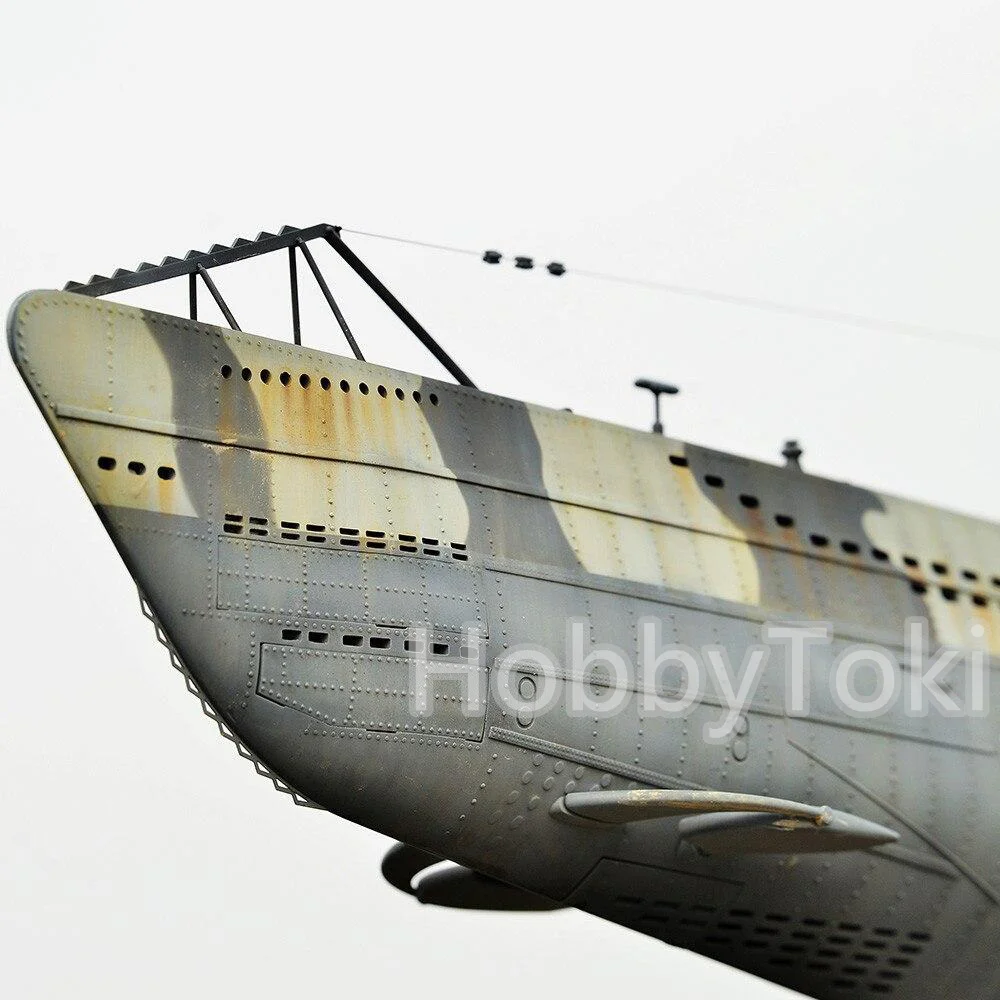

U-BOAT GERMAN TYPE VIIC SUBMARINE 1/48 KIT
Hobby Grade

Age above 14+

Features:

HIGH QUALITY model kit.
Designed by detailed drawing and resource.

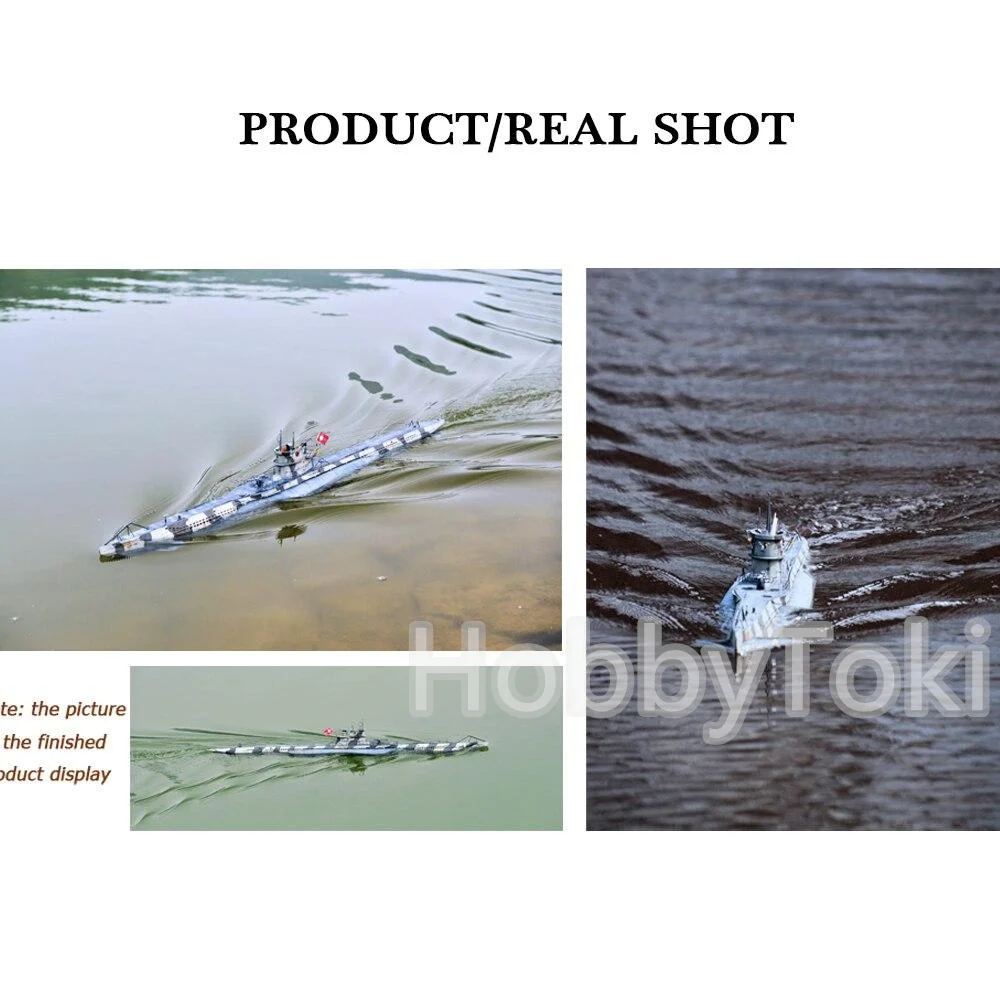

Suit for building an RC model or a static display model.
Hull and all components are the ABS plastic injection forming.
Part of the detail components and power components can provide metal material, CNC precision machining and become upgrade kit.

Product information:

Brand :HobbyToki
ITEM:1/48 VIIC German U-boot
Scale:1/48
RTR size:509*211*186mm
ARTR size/weight:1398x130mm

Kit size/weight:990x280x185mm

History of Type VIIC Submarine

Type VII U-boats were the most common type of German World War II U-boat. 703 boats were built by the end of the war. The lone surviving example, U-995, is on display at the Laboe Naval Memorial located in Laboe, Schleswig-Holstein, Germany.

Type VIIC

See also: Category:German Type VIIC submarines

A cross-section of a Type VIIC U-boat.

Miniature model of a Type VIIC.

Detailed drawing of a Type VIIC U-boat.

The Type VIIC was the workhorse of the German U-boat force, with 568 commissioned from 1940 to 1945. The first VIIC boat commissioned was the U-93 in 1940. The Type VIIC was an effective fighting machine and was seen almost everywhere U-boats operated, although its range of only 8,500 nautical miles was not as great as that of the larger Type IX (11,000 nautical miles), severely limiting the time it could spend in the far reaches of the western and southern Atlantic without refueling from a tender or U-boat tanker. The VIIC came into service toward the end of the "First Happy Time" near the beginning of the war and was still the most numerous type in service when Allied anti-submarine efforts finally defeated the U-boat campaign in late 1943 and 1944.

Type VIIC differed from the VIIB only in the addition of an active sonar and a few minor mechanical improvements, making it 2 feet longer and 8 tons heavier. Speed and range were essentially the same. Many of these boats were fitted with snorkels in 1944 and 1945.

They had the same torpedo tube arrangement as their predecessors, except for U-72, U-78, U-80, U-554, and U-555, which had only two bow tubes, and for U-203, U-331, U-351, U-401, U-431, and U-651, which had no stern tube.

On the surface the boats (except for U-88, U-90 and U-132 to U-136 which used MAN M6V40/46s) were propelled by two supercharged Germaniawerft, 6 cylinder, 4-stroke M6V 40/46 diesels totaling 2,800 to 3,200 PS (2,100 to 2,400 kW; 2,800 to 3,200 shp) at 470 to 490 rpm.

For submerged propulsion, several different electric motors were used. Early models used the VIIB configuration of two AEG GU 460/8-276 electric motors, totaling 750 PS (550 kW; 740 shp) with a max rpm of 296, while newer boats used two BBC GG UB 720/8, Garbe, Lahmeyer & Co. RP 137/c or Siemens-Schuckert-Werke (SSW) GU 343/38-8 electric motors with the same power output as the AEG motors.

Perhaps the most famous VIIC boat was U-96, featured in the movie Das Boot.

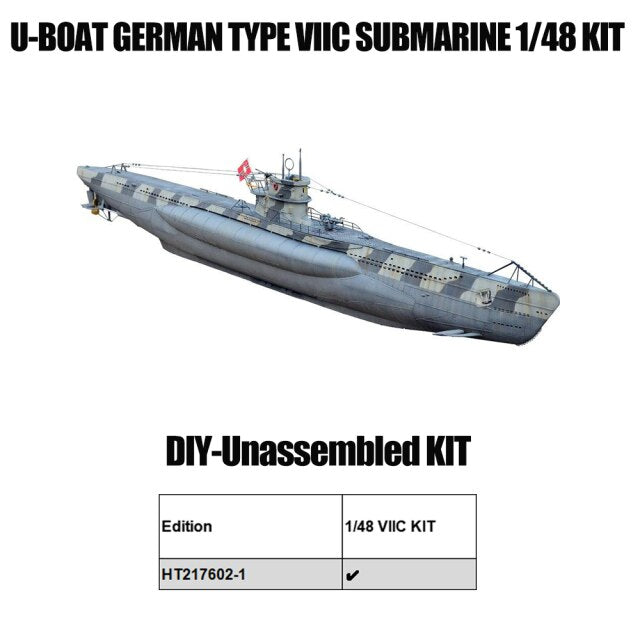

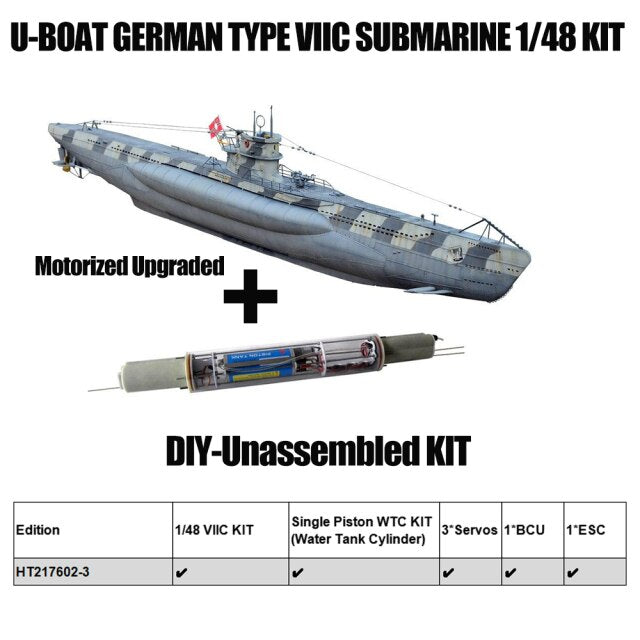

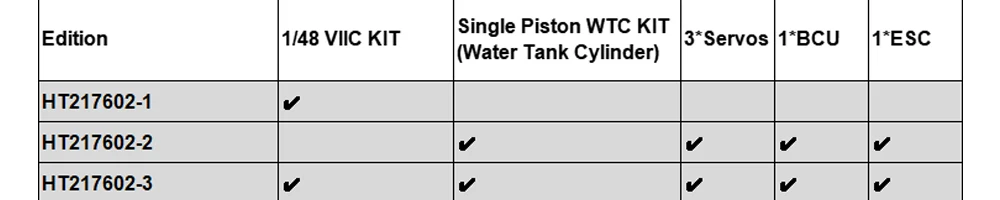

Different Version Includeds as Below , please pay attention to choose the correct version that you need

Kit included:

Kit includes colour decal.
Kit includes large size brass photo etch.
Kit includes 3D illustrated step by step instruction.
This kit(hull) comes with almost everything that needs to build an RC running model. Kit includes all plastic parts, metal parts, brass etching tablet, water stickers,specifications, and installation of the chamber components.
Used to drive the submarine voyage, snorkeling chamber, all the mechanical and electronic equipment, such as motors, pumps, steering gear, electronic governor, electronic switch, remote control equipment, batteries, etc., are installed in the chamber internal(WTC), please choose the correct type when you buy,thanks

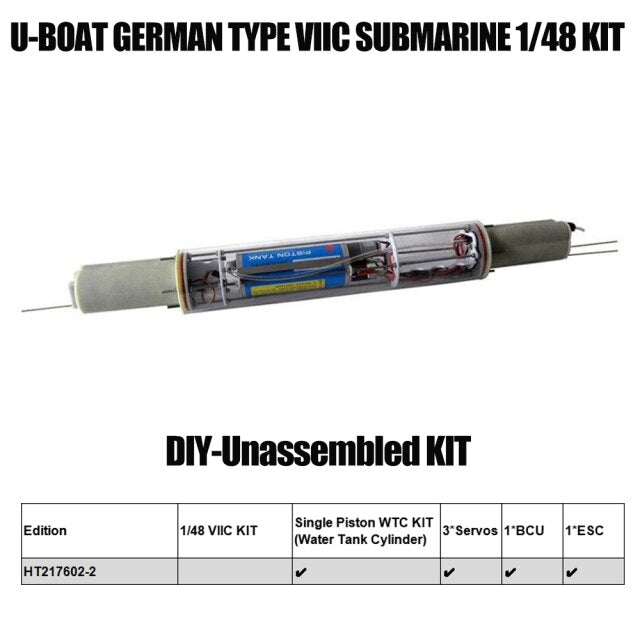

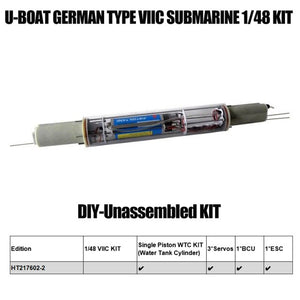

WTC Specifications

A STATIC DIVING RC SUBMARINE!Length--736 Beam--90mm
This WTC is for Germany type VIIC submarine.
It can also fit in similar size,double shaft submarine hull.
This WTC equiped with piston tank ballast system,The WTC has large space ,fit with T-sockets and 12-pin sockets for function update.
All parts made by inject ABS plastic/nylon,easy to assemble.
All metal parts such as running set made by CNC precision sizing.
Kit include all essential electric parts such as Piston tank &soleniod. Kit include all rubber seal parts.
Kit include illustrated step by step instruction. Free toolspack for assemble.
